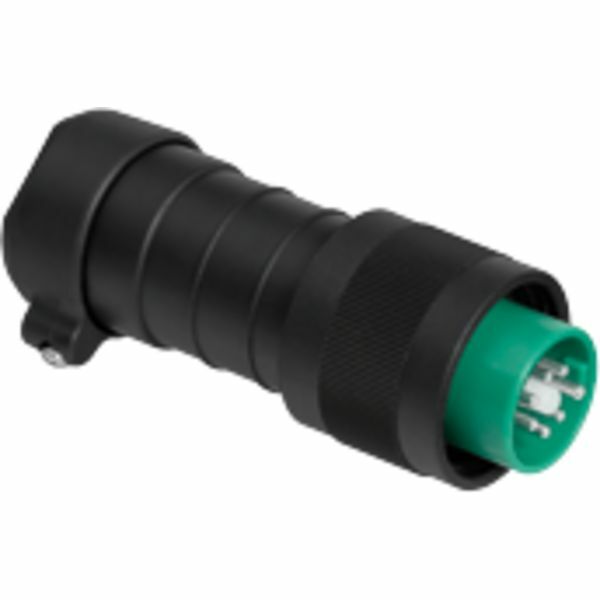

Stahl Steckverbinder miniCLIX 6 P + PE 380 - 415V 154005

R. STAHL Series 8591/2 7-pole, explosion-protected miniCLIX plug connectors disconnect non-instrinsically safe circuits up to 400 V/16 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/couplers made of polyamide, nickel-plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices. miniCLIX plug connector, Plug, Explosion-protected, Type : 8591/272-10-0003, AC rated operational voltage : 380 415 V, DC rated operational voltage : 0 V, Frequency Hz (for AC) : 50/60, Detailed number of poles : 6 P + PE, Coding (clock hour position) : 10, Recommended colour ring coding: Blue, Enclosure material : Plastic, Application range (zones) : 1 , 2, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db eb IIC T6 Gb, Min. ambient temperature : -55 °C, Max. ambient temperature : +40 °C, Locking device present : No, Connection type : 2.5 mm2 crimp, For further information, see : r-stahl.com WebCode 8591B

Lagerkennzeichen: Auslaufartikel (A), dieser Artikel kann nur noch abverkauft werden. Diese Artikel können nicht beim Hersteller nachbestellt werden.

Information des Herstellers zur Herstellerartikelnummer 154005 – Link 1 Information des Herstellers zur Herstellerartikelnummer 154005 – Link 2
