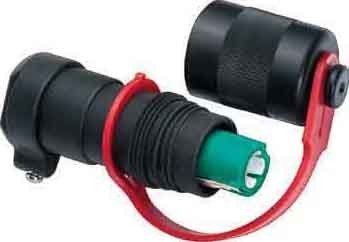

Stahl Kupplung 8591/136-08-0001

Art.Nr.: 10100034699

EAN: 4046827080340

Verkaufseinheit: 1 Stück

Hersteller: Stahl

Update: 29.03.24, 00:29 Uhr



Artikel nicht lagernd
Artikel nicht lagernd
Prüfe Expressversandoptionen...

515,96 EUR inkl. 19 % USt


Produktbeschreibung

R.STAHL Series 8591/1 and 8591/4 4-pole, explosion-protected miniCLIX plug connectors disconnect non-instrinsically safe circuits up to 250 V/10 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/couplers made of polyamide, nickel-plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices. miniCLIX plug connector, Coupling, explosion-protected, Type : 8591/136-08-0001, AC rated operational voltage : 0 V, DC rated operational voltage : 24 V, Detailed number of poles : 4 P, Coding (clock hour position) : 8, Recommended colour ring coding: Grey, Enclosure material : Plastic, Application range (zones) : 1 , 2 , 21 , 22, Degree of protection (IP) : IP66, Gas explosion protection : II 2 G Ex db eb IIC T6 Gb, Dust explosion protection : II 2 D Ex tb IIIC 60 °C Db, min. ambient temperature : -55 °C, max. ambient temperature : +40 °C, Locking device present : No, Connection type : Spring clamp terminal 1.5 mm2, For further information, see : r-stahl.com WebCode 8591A

technische Daten

Hersteller: Stahl
Verpackungseinheit: 1
Bezeichnung: Kupplung
Typenbezeichnung: 8591/136-08-0001
Hersteller - Artikelnummer: 154028
Netzspannung: 24 V
Nennstrom: 6 A
Polzahl: 4
Spannung nach EN 60309-2: sonstige
Uhrzeit-Stellung: 8 h
Kennfarbe: grau
Ausführung: Kupplung
Werkstoff des Gehäuses: Kunststoff
Kabeleinführung: gerade
Schutzkontakt: nein
Für Ex-Zone Gas: 1, 2
Für Ex-Zone Staub: 21, 22
Ex-Klasse: IIC
Zolltarifnummer: 85366990
Ursprungsland: DE
Reachkennzeichen: N
Kennzeichen Abakus: N
Artikelklasse: Explosionsgeschützter CEE-Stecker/-Kupplung

Lagerstatus

Lagerkennzeichen: Nichtlagerartikel (V) - Dieser Artikel kann bei positiven Lagerbestand nur noch abverkauft, jedoch nicht mehr beim Hersteller nachgeordert werden. Achten Sie daher auf die Livelagerabfrage bzw. auf die Statusmeldung unseres Lagers im Warenkorb.
